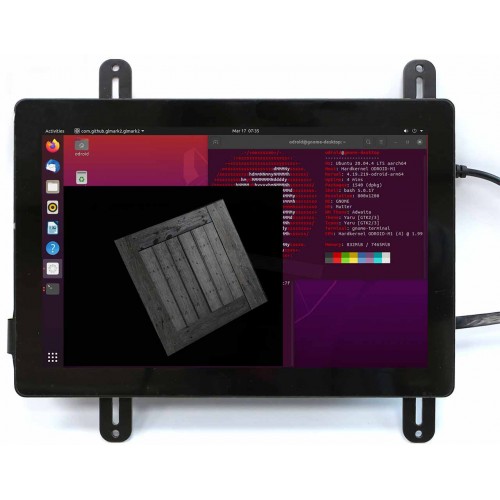

The four-lane MIPI-DSI port can be directly connected to a LCD panel. A 8inch 800×1280 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled.
If you assemble the ODROID-M1 single board computer on the rear side of the Vu8M kit, you can easily implement a Human-Machine-Interface (HMI) device. The U bracket PCB is included to dock ODROID-M1 to Vu8M.
Specifications
- 8-inch TFT-LCD
- 800(H) x 3(RGB) x 1280(V) pixels hardware resolution
- Mechanical Dimensions : 198(W) x 133.0(H)
- Viewable screen size : 172.224 x 107.64 mm (active area)
- 5 finger capacitive touch input
- Power consumption : 2.4W ± 10% (100% duty cycle)

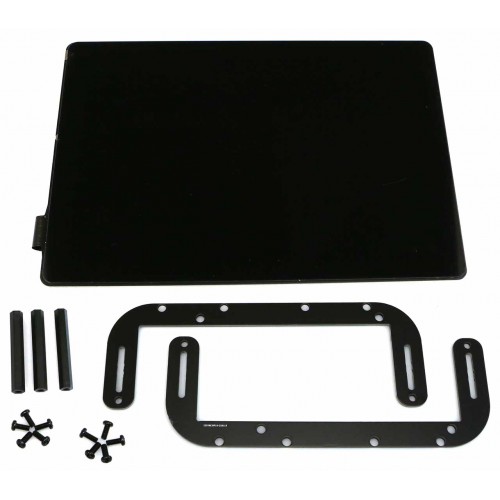

Package includes
A) Assembled 8inch TFT LCD + multi touch screen
B) 3 x M3*40(black) support (spare included)
C) 11 x PM3.0 x 7(black) bolt (spare included)
D) 2 x 60 mm FPCB cable
E) MIPI DSI converter board for M1
F) LCD bracket board for M1
G) 2 x U form bracket board for M1
Assembly Guide
ODROID-Vu8M LED Touch Screen [81013]
- Brand: Hard Kernel
- Product Code: ODROID-Vu8M LED Touch Screen
- Availability: In Stock
-
113.63€
- Ex Tax: 93.14€
